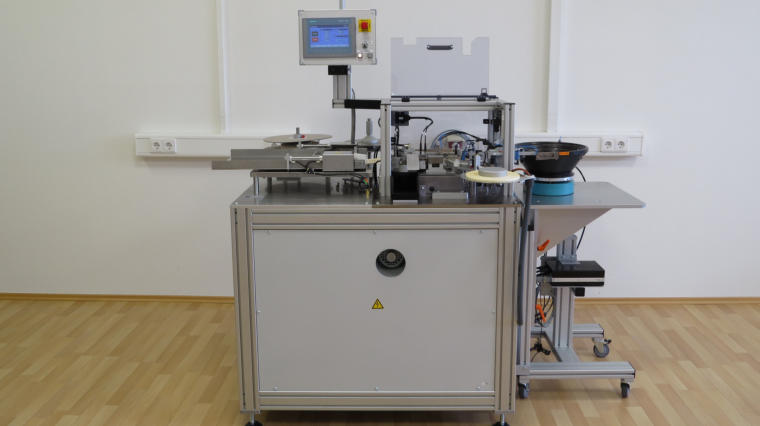

Radial taping machine

RGM 100

Machine for taping electronic components with radial leads, feeding from: • vibration bowl • hand  (by small capacity) Machine description: • Taping process: hot sealing • Carrier tape 18 mm; cover tape either 6 or 13 mm • Standard or customized tools • Component pitch 12.7 mm (½”) or 25.4 mm (1”) or 15 mm • Tape hole pitch 12.7 mm (½”), alternatively 15.0 mm • Standard equipment with tape winding device for reel, optional ammopack • Test and turning station possible • Transparent protective cover, ESD optional • Feeding options: o Exchangeable preset feeder for individual component profiles o Component feeder only with test device o Component feeder with test and turning station o Manual insertion system for small capacity • Signal indicator for the operating conditions (optional) • PLC Biviator or alternativley Siemens S7 controller; different parameters adjustable; plain text display • Easy exchange of tools to another component type possible within a few minutes • Output: up to 4000 components/hour (depending on component and processing); infinitely adjustable • Electric drive (three-phase motor) • Tools are driven by cam discs • Power consumption: max. 900 W • Operation Voltage: 230V/50Hz (standard), other voltages are available on demand • Air supply: 6 bar • Length x width x height (without accessories): 1600 x 800 x 1500 mm • Weight: approx. 120 kg (without accessories)
